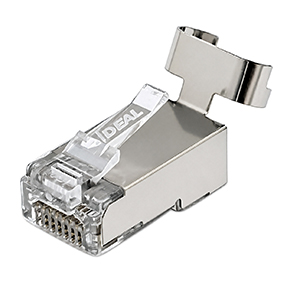

Shielded Feed-Thru RJ45 connectors for large-diameter CAT6 and CAT6A simplify cable assembly by enabling users to quickly verify that the conductors are in the correct order before crimping the connector. Compatible with twisted pair cables with an insulated conductor range of 0.040in - 0.048in diameter. When used with the IDE-30-495 tool, the wire is precision cut flush with the modular plug’s face, thanks to its patented design that prevents accidental contact between adjacent conductors or with the mating jack. This connector features an integrated metal shell and a cable strain clip that ensures a continuous path for cable shielding, allowing the cable to pass through the connector and into the device’s shielded port. It includes internal shield connection points on both the top and bottom for the cable foil or drain wire to make contact within the plug.
- Staggered conductor and pin design to accommodate large diameter cables
- For shielded twisted pair cables with insulated conductors 0.040in to 0.048in in diameter
- Shielded Feed-Thru, single-piece RJ45 connectors enable fast, simple installation and conductor order verification with less wasted materials
- Designed for best performance when used with the IDE-30-495
- 50 micro-inch gold plating on the contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
- Feed-Thru design minimizes untwisting of pairs inside the connector body to 1/4in
- Max cable jacket outer diameter of .320in
- UL Listed
- PoE, PoE+ and PoE++ compatible. IEEE 802.3af/at/bt
