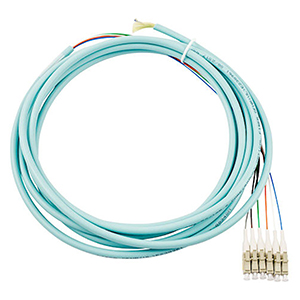

162246PJ-6 - 6 Strand Multimode 50/125 OM4 900um LC-UPC Fiber Pigtail - 3 Meter

Click the image to zoom.

6 Strand Multimode 50/125 OM4 900um LC-UPC Fiber Pigtail - 3 Meter

Construction

Fiber Count: 6
Fiber Type: OM4 50/125um, Simplex
Glass: Corning Clearcurve Bend Insensitive Fiber (BIF)
Polish Type: PC
Cable Type: Bunch, color-coded to TIA-598-A industry standards
Connector Types: LC
Jacket: Flammability rating OFNR (Riser), 9mm outside diameter, heat shrink to prevent zipcord from separating from connector

Performance

Insertion Loss: less than 0.25dB
Return Loss: plus or minus 0.25dB
Durability: more than 500 Matings
Operating Temperature: -20 degree C to 70 degree C (-4 degree F to 158 degree F)

Approvals
